Low density gray silicon substrate board

$512.0 $1258.0

The FCB series low-density gray silicon substrate board, originating from Far East Willy, is an innovative lightweight flexible board designed specifically for anti explosion and pressure relief. This product combines multiple advantages such as fire and moisture resistance, lightweight and high strength, energy conservation and environmental protection, easy installation, durability, and explosion-proof pressure relief. It is more than 1/5 lighter than traditional fiber cement boards and calcium silicate boards, and has better nail holding force and excellent construction performance. The FCB series products have passed ISO9001, ISO14001, and EU CE certification, ensuring green environmental protection, safety, and comfort. Suitable for replacing various materials such as flame retardant boards and fire-resistant gypsum boards, it is an ideal choice for building decoration and fire-resistant insulation systems.

Add To Cart

FCB Series Product Introduction

Brand Origin

The FCB brand name is derived from the acronym for Fiber Cement Board, which reflects a globally recognized naming convention and highlights the uniqueness of the product. The FCB series products represent the core category of functional boards in the company, committed to creating high-quality boards that are fire-resistant and moisture-resistant, and providing customers with green, environmentally friendly, safe, and comfortable living spaces.

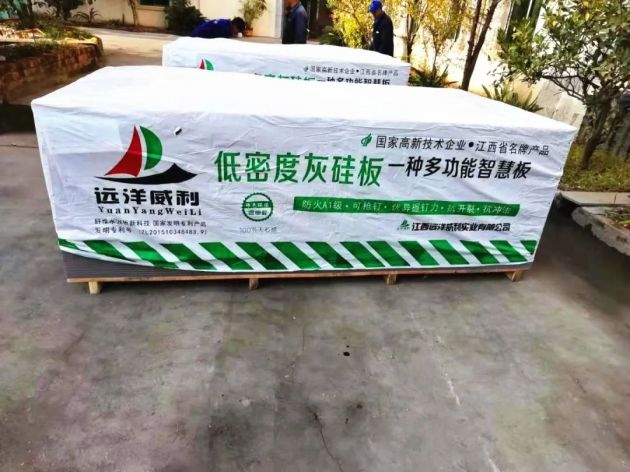

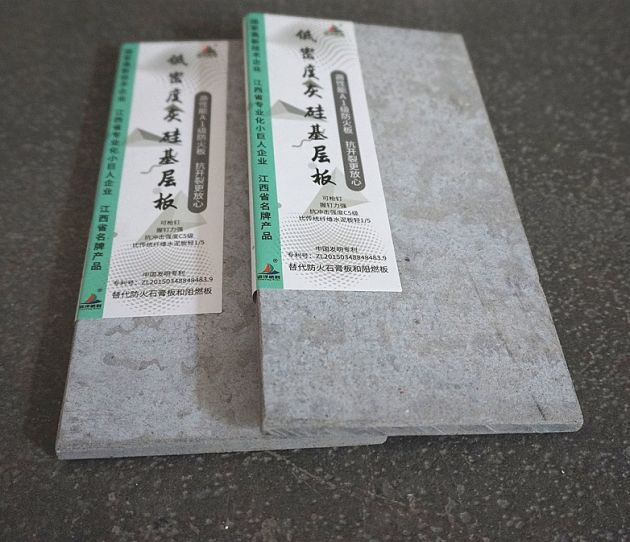

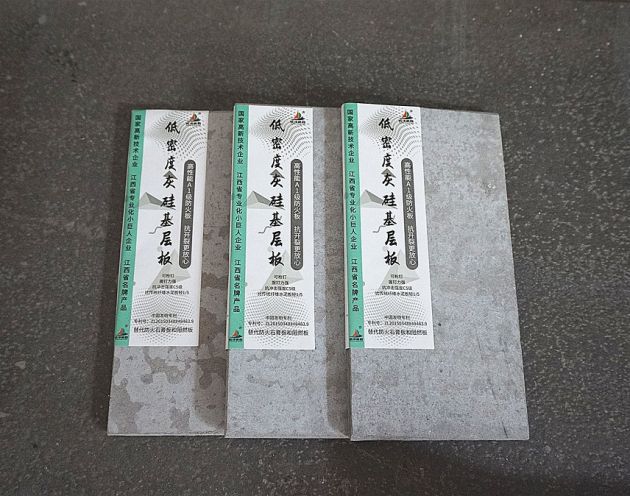

Low Density Gray Silicon Substrate Board

Product Overview

Low-density gray silicon substrate board is a lightweight flexible board under the umbrella of Far East Willy, focusing on anti-explosion and pressure relief performance. Compared with traditional fiber cement boards and calcium silicate boards, this product has innovative raw material ratios and production processes, integrating multiple properties such as fire and moisture resistance, lightweight and high strength, energy conservation and environmental protection, easy installation, durability, and explosion-proof and pressure relief.

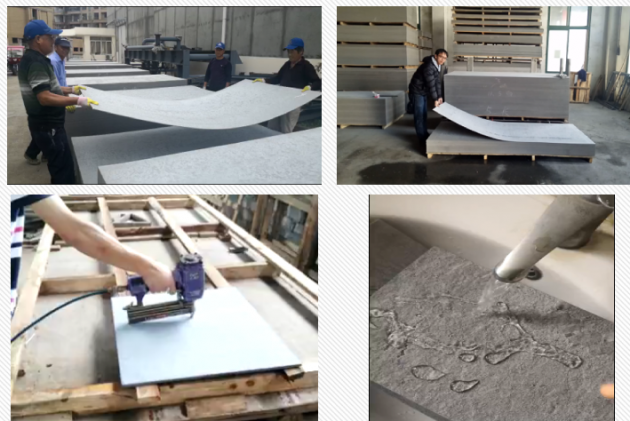

Product Advantages

1. Better Nail Grip
2. Excellent Construction Performance: Can be easily processed using tools such as hammers, utility knives, ordinary screws, gun nails, and conventional saw blades.
3. High Impact Strength: Meets the C5 level impact strength standard of the fiber cement board industry.

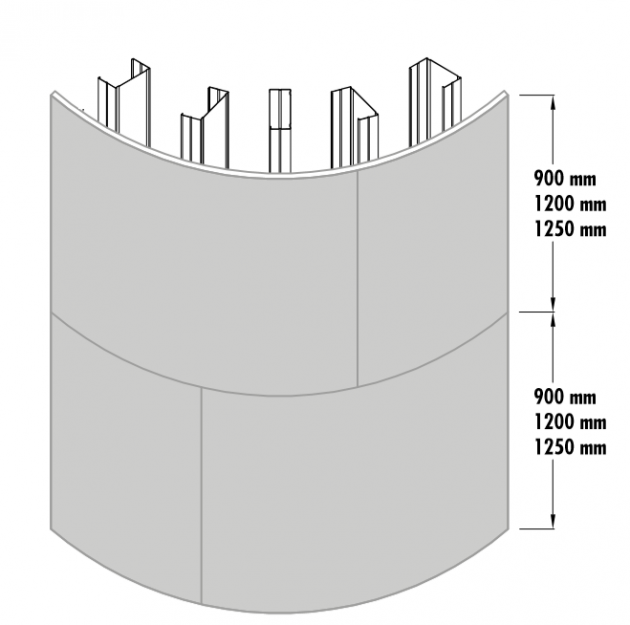

4. Good Flexibility and Elasticity: Breaks the rigid impression of traditional fiber cement boards and calcium silicate boards.
5. Lighter: More than 1/5 lighter than traditional fiber cement boards and calcium silicate boards.

Patent Information

• Chinese Invention Patent: Patent No. ZL2015034848483.9

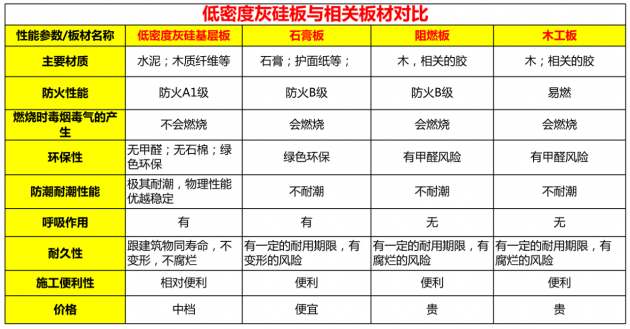

• Alternative Products: Flame retardant board, fireproof gypsum board, woodworking board, plywood, etc.

Physical Performance

• Size (mm): 1220 * 2440, 1200 * 2400 (customizable)
• Thickness (mm): 6/8/9/10/12/15 (customizable special thickness)
• Color: Grey (cement color)
• Density (g/cm³): ≤ 1.15
• Flexural Strength (Mpa): ≥ 7
• Static Flexural Strength (natural surface, not dried) (Mpa): ≥ 8
• Wet Expansion Rate (%): ≤ 0.20
• Thermal Conductivity W/(m·k): ≤ 0.18
• Nail Holding Force (N/mm): ≥ 45
• Impact Strength (KJ/㎡): ≥ 2.2
• Impermeability: After 24-hour testing, there are no water droplets or wet marks on the reverse side.
• Frost Resistance: 25 cycles of thawing without cracking, delamination, or detachment.
• Smoke Toxicity: Meets the requirements of GB/T20285-2006, safety level (AQ1).
• Formaldehyde Content: 0mg/L
• Asbestos Content: Does not contain asbestos, in accordance with HJ/T223-2005 standard.
• Radioactive: Zero radiation, meets the radioactive requirements of Class A decoration materials.
• Combustion Performance: Class A1 non-flammability, in compliance with GB8624-2012 standard.
