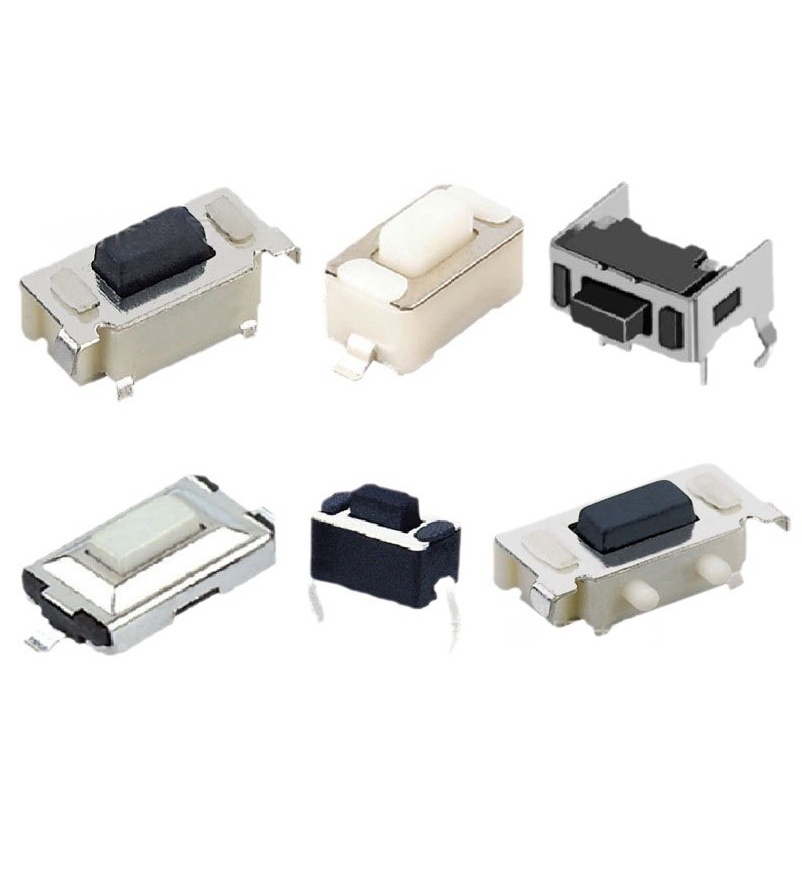

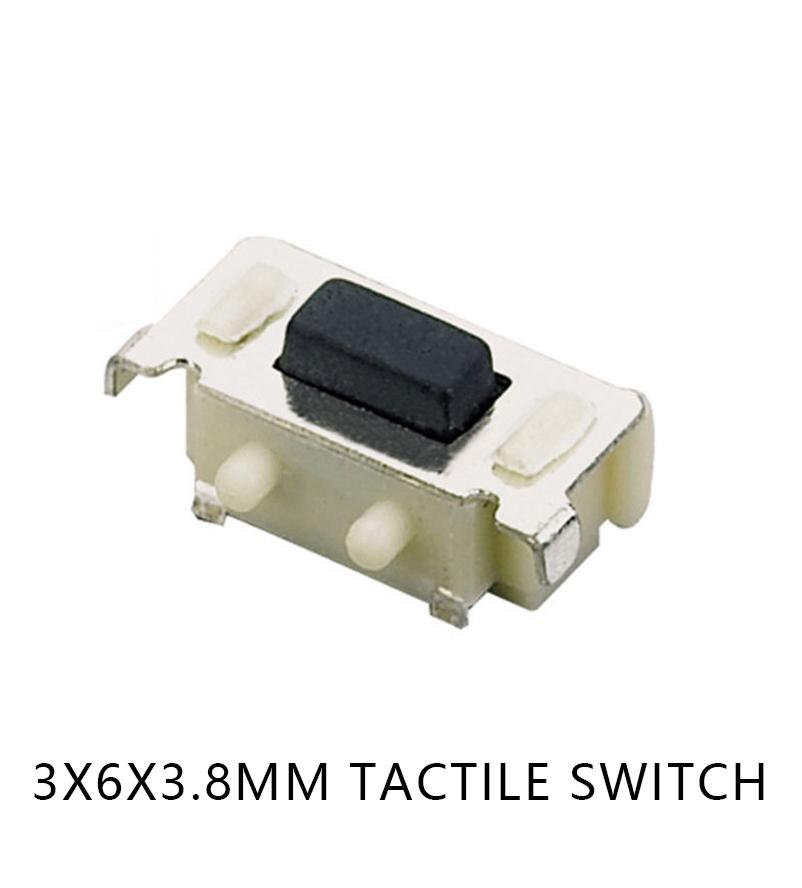

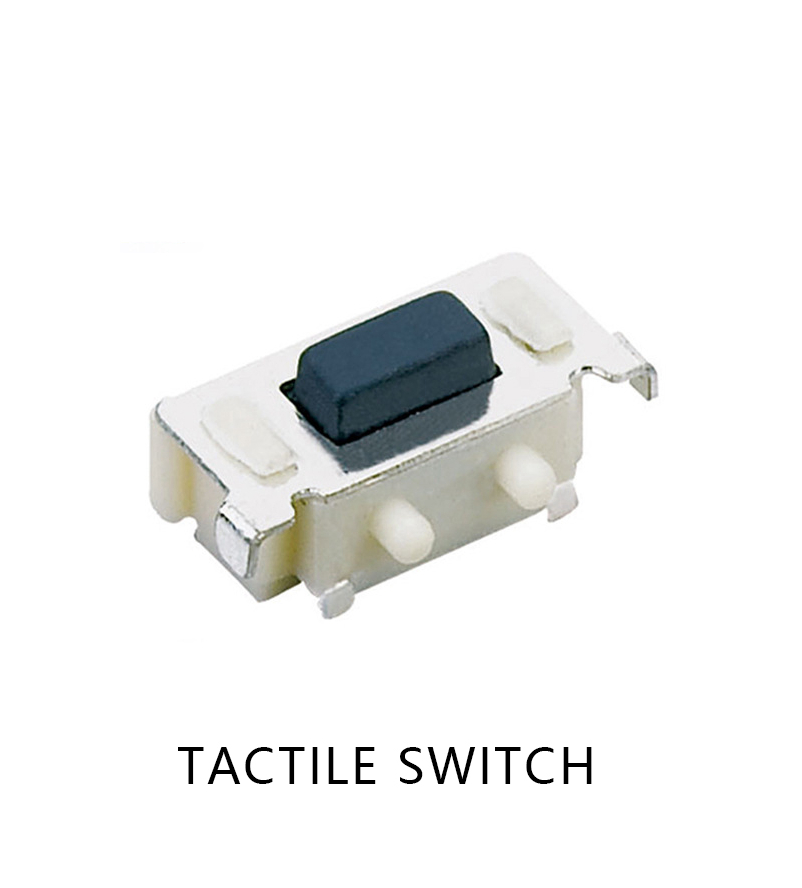

厂销3*6*3.5侧装轻触开关3x6x3.8侧贴小开关贴片侧按键按钮
厂销3*6*3.5侧装轻触开关3x6x3.8侧贴小开关贴片侧按键按钮
厂销3*6*3.5侧装轻触开关3x6x3.8侧贴小开关贴片侧按键按钮
厂销3*6*3.5侧装轻触开关3x6x3.8侧贴小开关贴片侧按键按钮
厂销3*6*3.5侧装轻触开关3x6x3.8侧贴小开关贴片侧按键按钮

厂销3*6*3.5侧装轻触开关3x6x3.8侧贴小开关贴片侧按键按钮

$0.01 $0.028

tactile switch, SMD tactile switch, side-actuated tactile switch, side-mounted tactile switch, 3x6mm tactile switch, 3x6x3.5mm tactile switch, 3x6x3.8mm tactile switch, 2-pin tactile switch, momentary switch, push button switch, tact switch, miniature switch, surface mount switch, SMT switch, PCB mount switch, side mount tactile switch, low-profile tactile switch

Add To Cart

  1. Environment temperature: -30℃~+70℃

  2. Relative Humidity: (40℃)≤95%

  3. Rating:DC12V. 50mA

  4. Contact Resistance :≤ 0.03Ω

  5. Insulation Resistance: ≥100MΩ

  6. Dielectric Strength : AC250V(50Hz for 1minute)

  7. Electrically Life: 50,000Cycles

  8. Travel:0.25±0.1mm

  9. Operating Force:120(±30gf) 180(±30gf) 260(±30gf)
