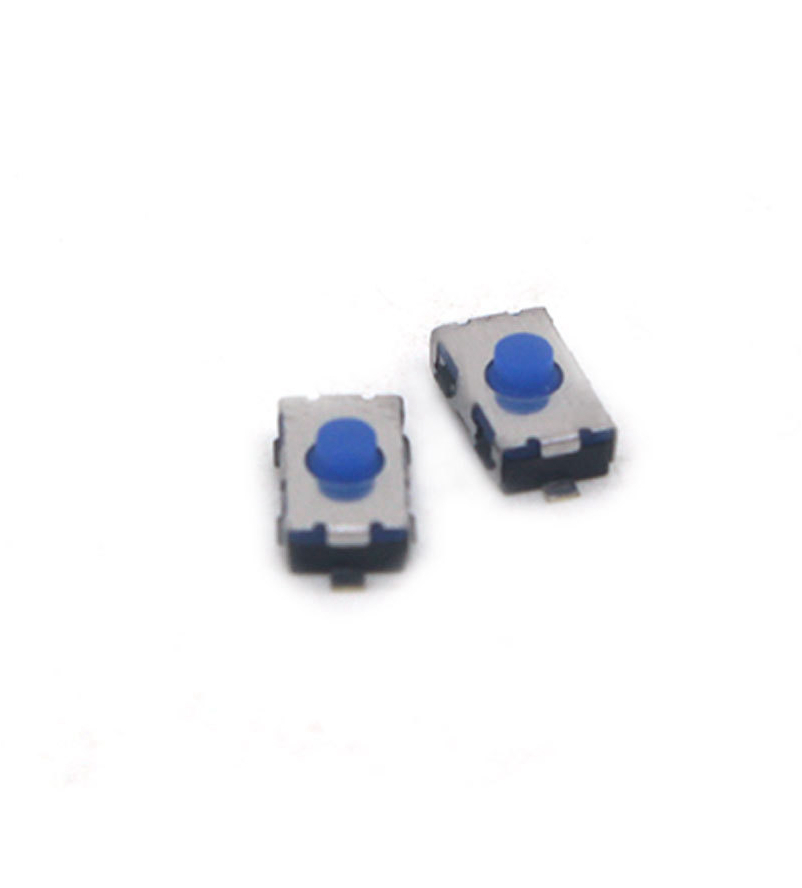

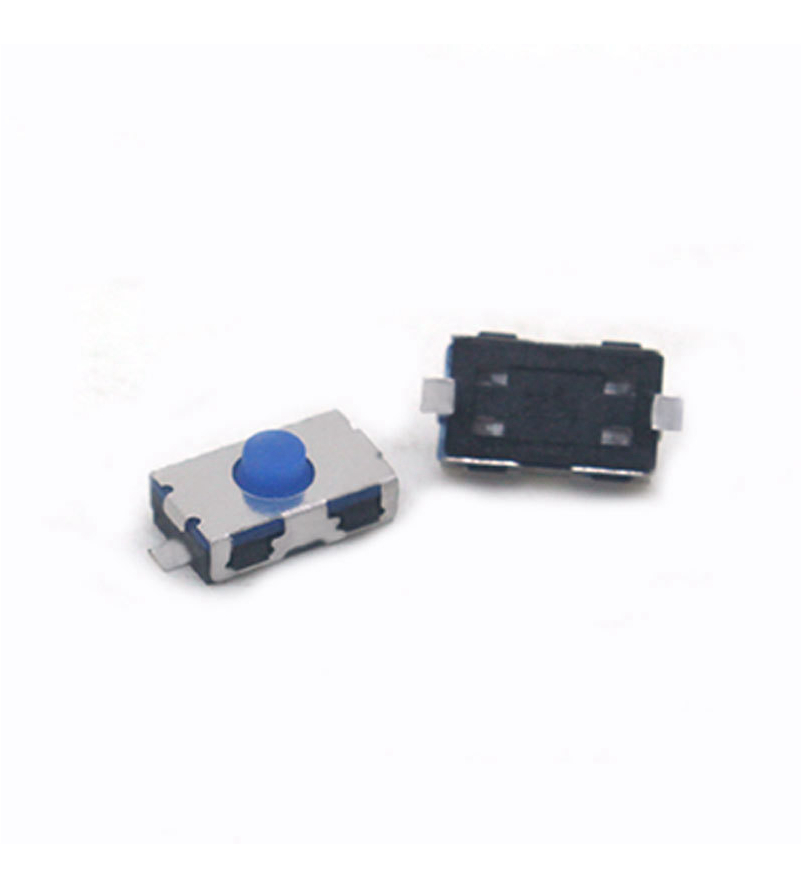

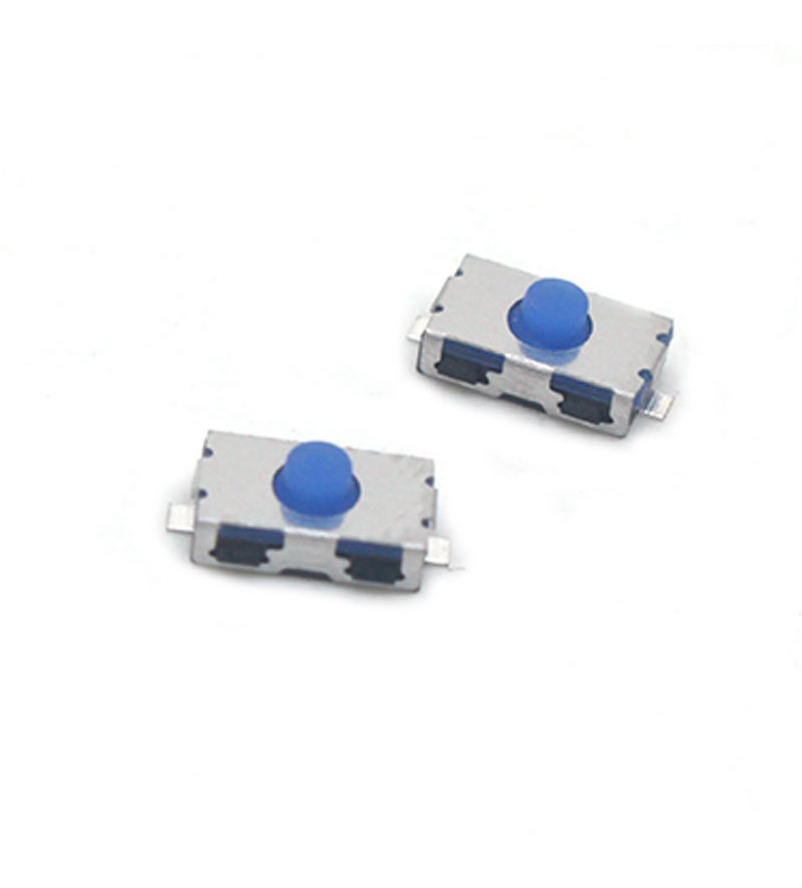

Touch switch 4 * 6 * 2.5mm 2-pin silicone 2P patch button 4x6x2.5 micro button normally open and normally closed TP05
Touch switch 4 * 6 * 2.5mm 2-pin silicone 2P patch button 4x6x2.5 micro button normally open and normally closed TP05
Touch switch 4 * 6 * 2.5mm 2-pin silicone 2P patch button 4x6x2.5 micro button normally open and normally closed TP05
Touch switch 4 * 6 * 2.5mm 2-pin silicone 2P patch button 4x6x2.5 micro button normally open and normally closed TP05

Touch switch 4 * 6 * 2.5mm 2-pin silicone 2P patch button 4x6x2.5 micro button normally open and normally closed TP05

$0.15 $0.3

Turtle type tactile switches are mainly used as operation switches for various audio and video devices, recorders, cameras, mobile phones, MP3/MP4/MP5 and other electronic products. It has the following characteristics: 1. Suitable for reflow soldering 2. Reliable contact sealing structure 3. Due to its small size, it has increased the mounting density of various components on the circuit board 4. The switch can be packaged with a 12mm width braided tape

Add To Cart

Specification: 4 × 6 × 2.5 normally closed
Product type: Self resetting
Operation direction: direct press
Dimensions: 4 × 6
Packaging method: bagged
Rated current: 0.1
Number of pins: 2
Operating stroke: 0.25 ± 0.1mm
Rated voltage and current: DC12V/50mA
Contact resistance: 50m Ω (max)
Insulation resistance: 100m Ω (min)
Voltage resistance: 250V AC/1min
Action force: 160/260 ± 50gf
Service life: 50000/100000 cycles
Product height: For details, please consult customer service
