Case of Glass Curtain Wall Fireproof Lining Board: Hikvision Robot Intelligent Manufacturing Tonglu Base
Yuanyang Weili focuses on the research and development of fire-resistant fiber cement boards and green building materials. As a national high-tech enterprise, we provide high-quality products that have passed ISO9001, ISO14001, and EU CE certification. Our curtain wall fireproof board is made of inorganic materials such as kaolin and wood pulp fibers, ensuring A-level fire resistance, high strength, and excellent thermal insulation and weather resistance. Specially suitable for fire-resistant backing, eaves construction, and interlayer sealing of glass curtain walls, effectively preventing the spread of fire and ensuring building safety. The case study of Haikang Robot Intelligent Manufacturing (Tonglu) Base showcases the application and advantages of our products in modern architecture. Choose Oceanwide Willie to provide comprehensive fire prevention and insulation solutions for your buildings.
Recent Developments in Fire Separation for Glass Curtain Walls
In recent years, with the rapid development of the socio-economy, the use of glass curtain walls has become increasingly widespread. Consequently, the method of setting up fire separation between layers of glass curtain walls has garnered more attention in architectural fire safety design. It is particularly important to ensure that these separations not only meet the aesthetic needs of the building but also guarantee fire safety. The Oceanwide Weili Curtain Wall Fireproof Board uses inorganic materials such as kaolin and wood pulp fiber as its main raw materials. It is manufactured through processes including mixing, molding, demolding, high-temperature steam curing, and drying. The board is a non-combustible material with a Class A fire rating, high strength, excellent thermal insulation, and strong weather resistance.

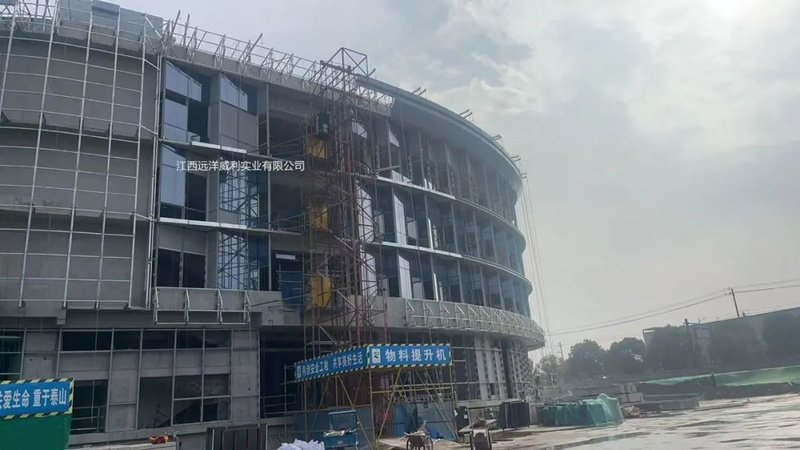

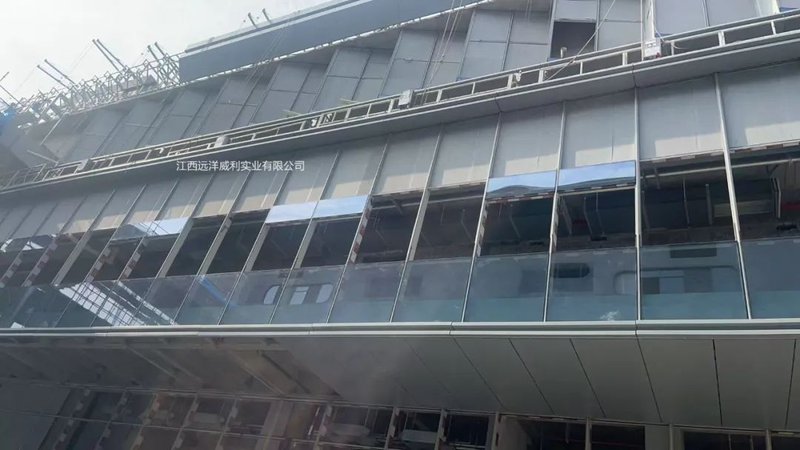

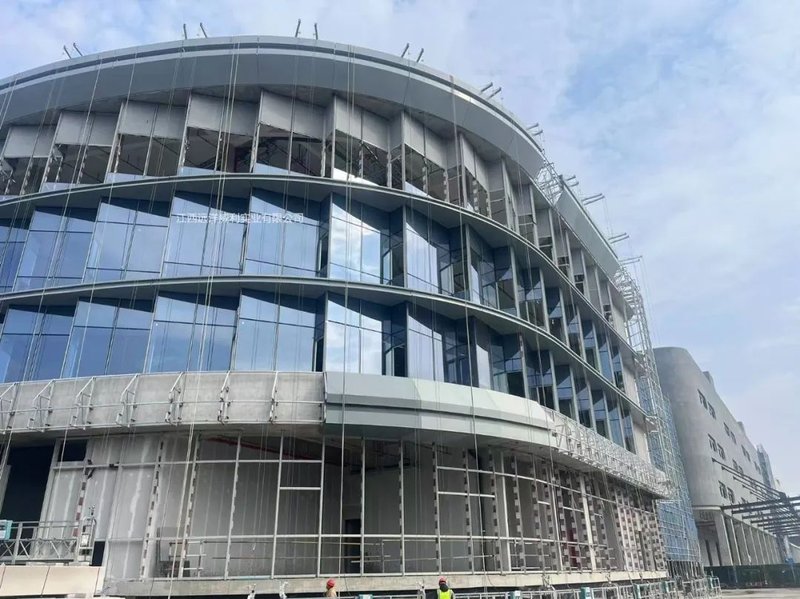

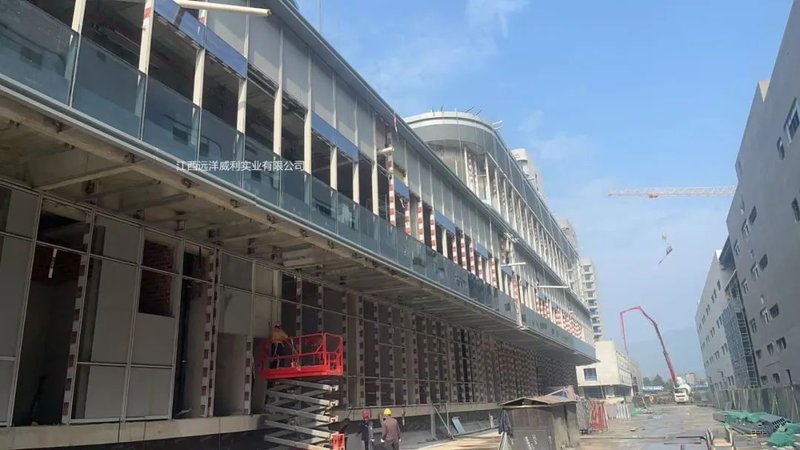

Hikvision Robotics Intelligent Manufacturing (Tonglu) Base Project

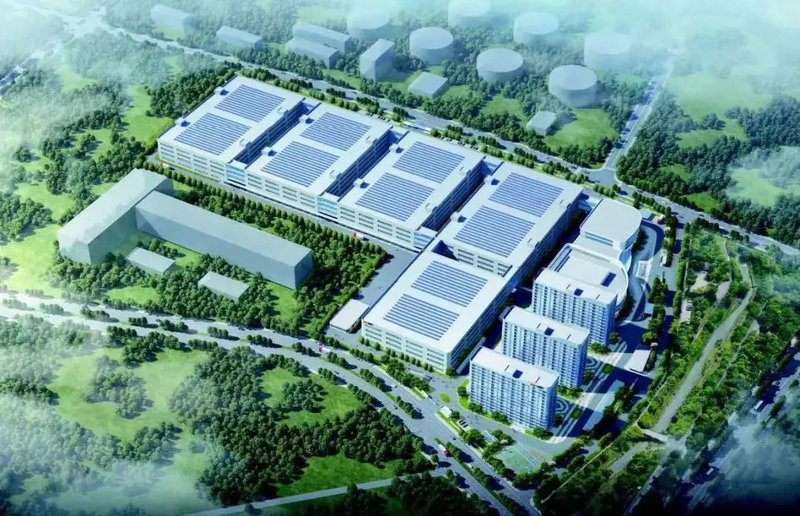

The Hikvision Robotics Intelligent Manufacturing (Tonglu) Base project is a major construction project in Hangzhou, Zhejiang Province for the year 2024. It covers a total construction area of approximately 180,000 square meters. The main construction includes H3-H6 factory buildings, a chemical storage warehouse, multi-level corridors, and related supporting facilities. The project not only requires a modern and energy-efficient building appearance but also needs to meet the fire safety requirements for densely populated places as stipulated in the "Code for Fire Protection Design of Buildings" GB50016. Additionally, it must achieve multiple performance integrations such as fire resistance, thermal insulation, and moisture resistance within the backing space. Conventional fireproof materials often lack sufficient strength and thermal stability at the same thickness, which always leaves safety concerns for the curtain wall system.
Case Details
- Project Name: Hikvision Robotics Intelligent Manufacturing (Tonglu) Base
- Application Product: Curtain Wall Fireproof Board

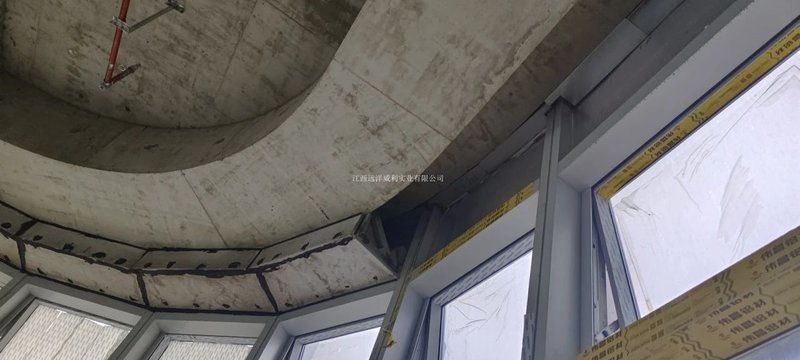

- Application Location: Fireproof Backing of Curtain Wall
- Product Application Highlights: Lightweight (easy to install), low thermal conductivity (excellent fire insulation), high durability (does not affect the building's fire resistance over time)
Functions of Curtain Wall Fireproof Board
Curtain wall fireproof components can effectively prevent the destructive power of smoke and flames during a fire. As shown in Figure 1, when a fire occurs indoors, there are often gaps between the vertical curtain wall and the horizontal floor slab. If these gaps are not treated or are improperly treated, smoke and flames can rise through these gaps to the upper floor during a fire. When the curtain wall glass cracks and falls, flames can spread from the outside of the curtain wall to the upper floor's exterior wall, cracking the upper floor's glass curtain wall and entering the upper floor's interior, igniting combustible materials inside and causing a chain reaction that could potentially engulf the entire building in fire. Refer to the figure below: the left side shows the spread of flames and smoke when a fire occurs indoors against the curtain wall. The right side shows the use of curtain wall backing fireproof components, which seal the gaps between the curtain wall and its surrounding fire separation components, the gaps between the curtain wall and the floor slab or the outer edge of the partition wall, and the gaps between the curtain wall and the edges of solid wall openings, ensuring that a fire on the lower floor cannot rise through the interlayer or damaged curtain wall to the upper floor.
Specifications
- Dimensions (mm): 1220*2440
- Thickness (mm): 8-12
Features
- Class A Non-combustible: The board maintains integrity at high temperatures, enhancing the fireproof performance of the fireproof components.
- Low Thermal Expansion Coefficient: The board has minimal shrinkage at high temperatures.
- Low Thermal Conductivity: Delays the temperature rise on the backfire side.
- Common Properties: Class A fire resistance, moisture resistance, long service life, high strength, sound insulation, thermal insulation, energy-saving, and thermal insulation.
Applications of Curtain Wall Fireproof Board in Glass Curtain Walls
- Backing of Glass Curtain Walls
- Fireproof Eave Construction of Glass Curtain Walls
- Fireproof Layer Sealing of Glass Curtain Walls
